Demac SET

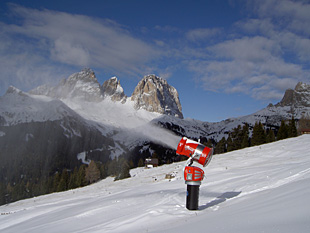

SET is DEMAC's top model: It is a snowmaker built following traditional criteria with a built-on compressor. The newly designed GRP blower with its powerful fan with plastic blades makes impressive throwing distances a reality. It excels with its excellent efficiency as well as high-volume snowmaking. The newly designed blower suspension includes the entire operating system and can be rotated 360° on a pivot bearing.

This machine is available fixed on 1,5 m tower (AT-ATK), in the mobile version AMK with on board compressor, on 7 m swivel arm or on the particularly developed 4 m inclined elevator-tower (AS-ASK).

DEMAC Snow Technology - Selva di Val Gardena - Dolomites - South Tyrol - Italy

The mobile version AMK/MMK allows flexible snow production in critical spots not covered by the permanently installed snowguns.

The muffled SET SILENT was specifically designed for residental areas. With some alterations to the blower such as a double wall construction with noise-insulating material or a special plastic fan, noise emissions were drastically reduced without compromising the power of the machine. The noise level is comparable with a normal conversation.

The heated Aluminium corona consists of 4 rings with 15 water nozzles each and one Ring with 24 nucleators. This results in 15 different steps to adjust water throughput with a maximum of 500 l/min, controlled by the Aluminium module, which operates at pressures ranging from 10 to 50 bar. Via a pressure regulator, the nucleator jets are supplied. The integrated valve technology ensures complete emptying of the module as well as all jets and hoses at the end of operation and in cases of power failure. Additionally, a stainless steel water filter is integrated. The snowmaker is connected with the hydrants using quick disconnect couplers.

A 4 kW oil-free piston compressor (also available with oil) provides the required air supply.

Swivelling across 360° is performed by a small electric motor, which is controlled from the display console or centrally from a PC. For maintenance work, the snowmaker can also be turned into the desired position by hand. The inclination of the snowblower barrel is adjusted by means of a hydraulic manual crank.

The snowmaker can easily be relocated using a snowmobile. Thanks to its simple structure, the machine can be lifted using the groomer's shield. The vehicle does not require any modifications, mechanical or otherwise.

The mobile version SET AMK can also be towed using its built-in towing lug.

Power supply: 24 kW
Nominal power fan motor: 18,5 kW
Power input fan motor: 16 kW
Compressor: 5,5 kW
Heating: 2,5 kW
Water pressure: 10-50 bar
Max. water output: 500 l/min
Water nozzles: 48
Nucleator nozzles: 24
Swinging: 360°
Overall height: 2300 mm
Lenght: 2500 mm
Width: 2420 mm
Weight: 810 kg
